Accurate Measurement of Fuel Consumption in Diesel Engines with the DON from Kobold

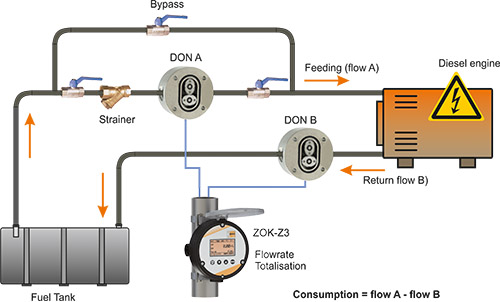

Oval Wheel Flow Meters Model DON may be used for fuel consumption measurement in diesel engines using the dual flow inputs and the 'A-B' setting. A pair of DON flowmeters is used with a single electronic model ZOK-Z3 to give a net reading of fuel consumption. In this off-shore application, a fuel consumption measurement system has been effectively implemented on trawler diesel engines; similarly also suitable for small ships. Here we used a pair of stainless steel flowmeters (DON-215 for flows up to 550 l/h per flowmeter) and one ZOK-Z3 per engine. As choking of the flowmeter or strainer in a main line may result in higher differential pressure resulting in diminishing fuel supply to the engine, an alternative is to use a pressure relief valve in the bypass line. Higher inlet pressure opens the pressure relief valve and ensures a constant supply to the diesel engine.

In selective cases, the choice of "pulsating flow” option may be recommendable.

With this installation, the fishermen are now in a position to monitor the actual real time fuel consumption and adapt the ship speed to optimize it.

In general, the return of investment is implemented within a month
